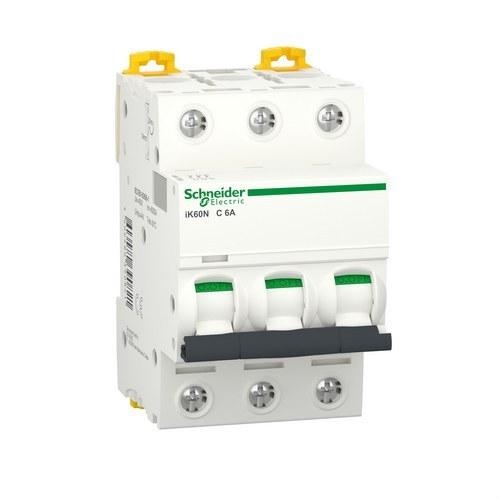

IK60N Circuit Breaker 3P 6A Curve C

Technical Description

Schneider Electric Acti9 iK60N 3-pole, 6 A miniature circuit breaker, designed to protect low-voltage three-phase circuits against overloads and short circuits.

Applications and Benefits

Suitable for protecting low-current three-phase lines, switching auxiliary circuits, or supplying equipment with low power consumption.

Technical Features

• Range: Acti9 iK60N.
• Number of poles: 3P, with 3 protected poles.
• Rated current: 6 A.
• Tripping curve: C.
• Rated voltage: 400 V AC.
• Insulation voltage Ui: 440 V.
• Impulse withstand voltage Uimp: 4 kV.
• Breaking capacity: 6 kA at 230/400 V according to EN/IEC 60898.
• Frequency: 50/60 Hz.
• Energy limiting class: 3.

Installation

It should be selected according to the load current, conductor cross-section, and short-circuit conditions available at the installation point.
