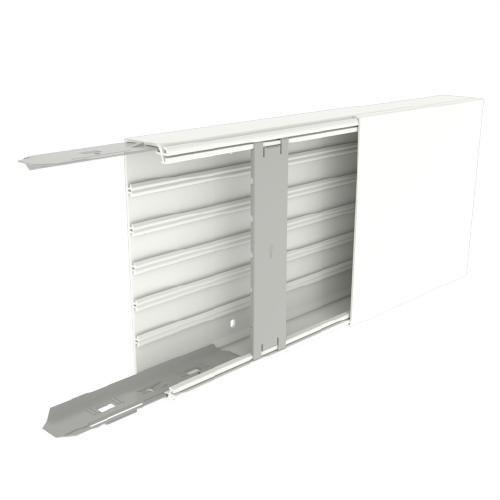

Installation Duct 60x230 mm Unex in U23X - 3 Meter Duct

The Unex 73088-2 duct measuring 60x230 mm is designed for the distribution and protection of electrical and communication cables in both indoor and outdoor installations. Made from U23X material, this duct offers excellent resistance to weather and UV rays, with over 40 years of proven reliability in outdoor environments. Its robust design, with mechanical protection IK10 and protection rating IP4X when installed on a wall, ensures safety, durability, and ease of use in all types of environments.

This model features an external snap-on cover, allowing for easy installation without the need to slide it, thus facilitating both installation and maintenance. It incorporates flexible compartmentalization that allows for the separation and protection of different circuits, ideal for installations where electrical, voice, data, and multimedia networks coexist.

The base of the duct is perforated every 250 mm to speed up installation. Additionally, it is supplied with a bridge every 0.5 m and two joints, pre-installed from the factory, ensuring cable retention and perfect alignment between sections. The entire assembly can be painted to aesthetically integrate into any environment and is compatible with frame and plate systems to accommodate mechanisms from the main brands on the market.

Recommended Applications

• ICT electrical and telecommunications installations
• Cable distribution indoors and outdoors
• Electric vehicle charging projects
• Installation on walls, ceilings, or suspended installations

Technical Features

• Reference: 73088-2
• Dimensions: 60 × 230 mm
• Section length: 3 meters
• Duct material: U23X
• Finish material: U24X
• Color: White RAL 9010 (paintable)
• Cover installation: Snap-on, no sliding
• Mechanical protection: IK10
• Electrical protection: IP4X (on wall)
• Fire resistance: Glow wire test at 960°C, non-flame propagator

Included Elements

• 1 duct of 3 m with base perforated every 250 mm
• 1 bridge every 0.5 m (pre-installed)
• 2 joints between sections (pre-installed)
• Movable front-mounted partition
• Protective film for transport and installation

Additional Advantages

• Quick installation: finishing elements with cable retention and edge protection
• Total safety: removable cover only with a tool, suitable for outdoor use
• Compatibility: adapts to standard market mechanisms
• Versatility: possibility of installing corner pieces and performing suspended installations

The Unex 73088-2 installation duct offers a professional, durable, and safe solution for cable organization in demanding environments, with a mounting system that saves time, enhances aesthetics, and ensures durability in any type of electrical or communication installation.
